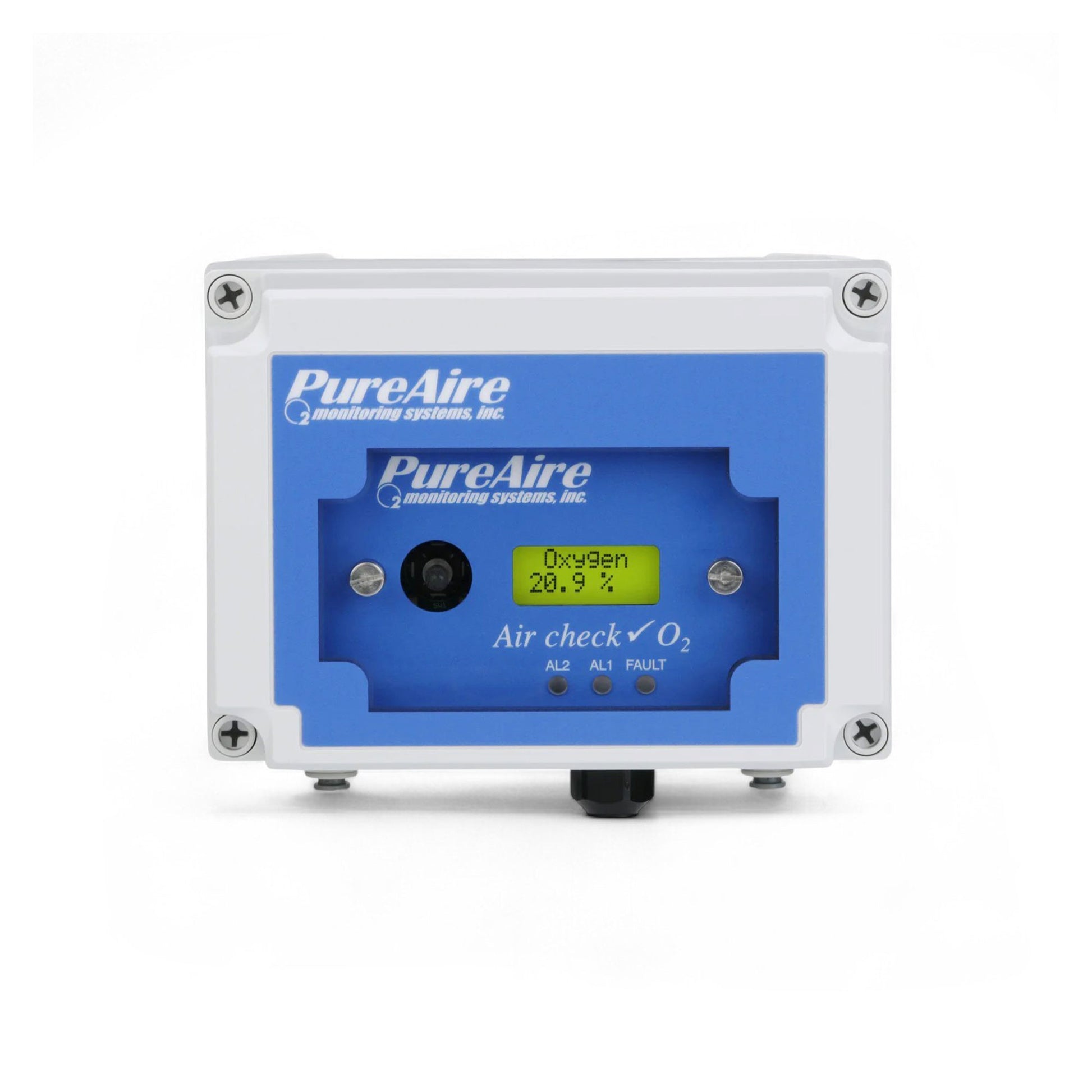

Sample Draw Oxygen Monitor
Sample Draw Oxygen Monitor
Sample Draw Oxygen Monitor is the perfect solution for remote oxygen monitoring in confined spaces, storage areas, and hard-to-reach locations. With a built-in air pump, this advanced oxygen monitor can draw air samples from up to 100 feet away, making it ideal for places where placing a traditional oxygen sensor isn’t possible.
This oxygen monitoring system is designed for facilities that use inert gases like nitrogen, helium, or argon. It’s a reliable choice for MRI rooms, laboratories, cryogenic storage facilities, food and beverage production areas, and other oxygen-sensitive environments.
Built for durability, the Sample Draw Oxygen Monitor performs accurately even in extreme temperatures as low as -40°C. At its core is PureAire’s zirconium oxide sensor, a cutting-edge technology that guarantees continuous operation for over 10 years without needing replacement or frequent recalibration.
If you’re looking for a low-maintenance, highly reliable oxygen monitor for industrial or laboratory use, PureAire’s Sample Draw Oxygen Monitor delivers unmatched performance and peace of mind.
- Long Life Zirconium Sensor – 10+ years average sensor life
- No calibration sensor
- Two, user-adjustable, alarm relay setpoints are available or alarm defaults are set to 19.5% and 18.0%

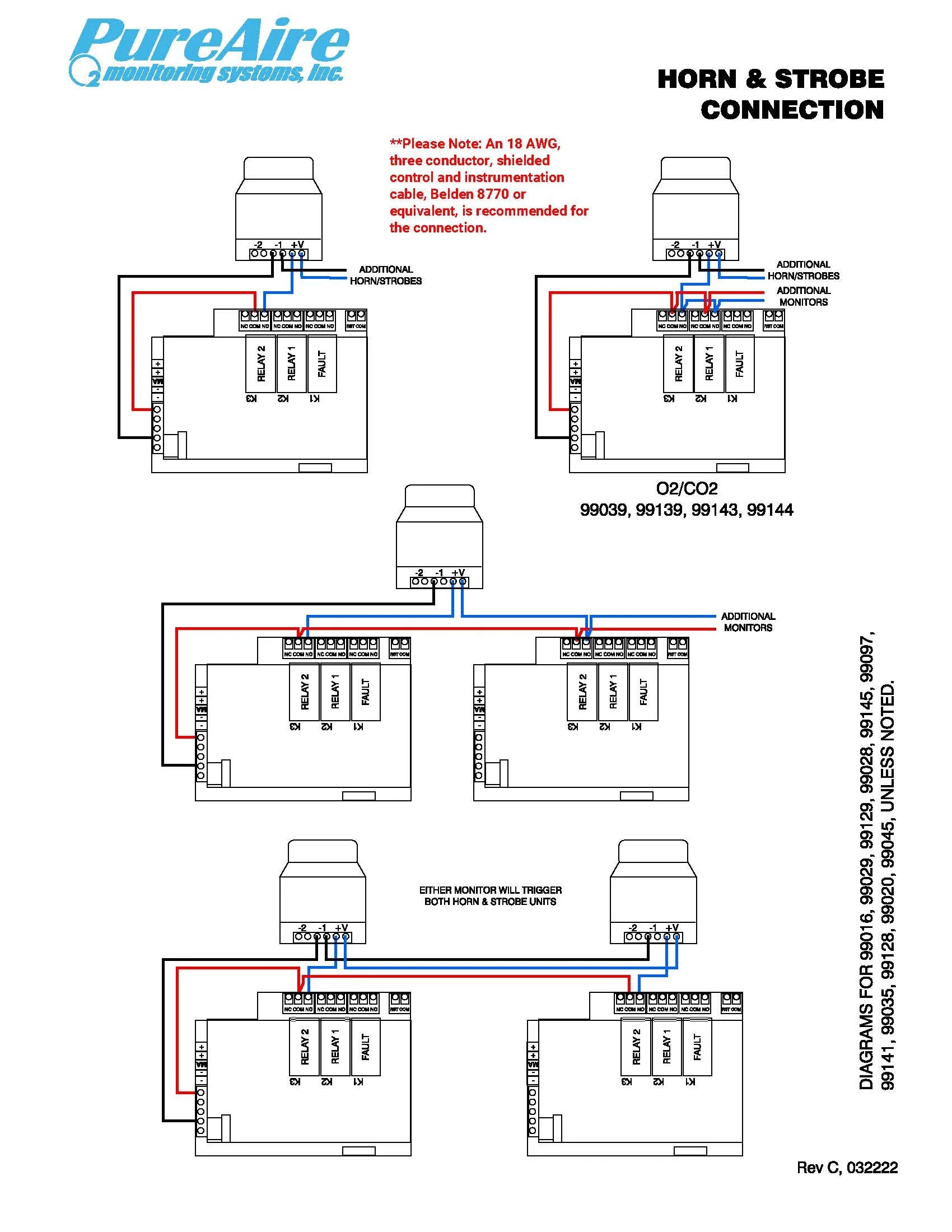

- Built-in audible alarm 90dB (99029, 99129, 99059, 99092)
- 3-year warranty
- Digital display

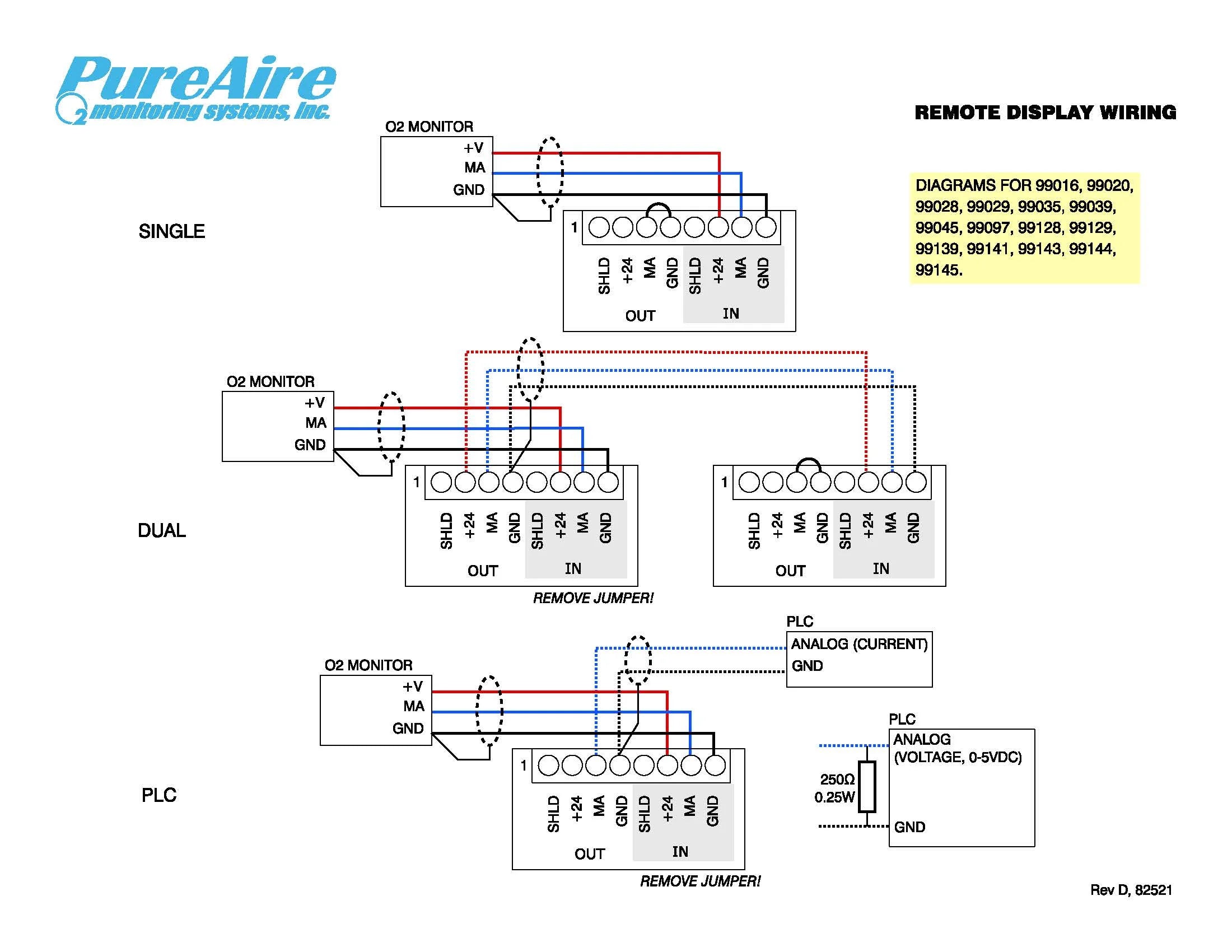

- 4-20mA analog output (Active)
- No drift due to thunderstorms or barometric pressure changes
- Wall mounting brackets
- Built-in Flow Sample Pump (99019, 99029, 99059, 99060, 99129, 99130)
- UL, C, UL, and CE Approvals
- 24V DC Power supply included
| Sampling Method | Sample Draw |
| Gases Detected | Oxygen (O2) |
| Range | 0 – 25 % or 0 – 95% |
| Accuracy | Delivers ±0.2% O2 accuracy (± 1 % of full range) |
| Operating Temperature | -40º to 140ºF (-40º to 60ºC) |
| Display | 3/4″ LCD Digital Display, Back Lit |
| Sensor Type | Long-life zirconium oxide sensor cell |
| Sensor Life | > 10 years under Normal Conditions |
| Signal Outputs | 4-20 mA Analog Output (Active) Dual-Level Alarm Relay Contacts Built-in Horn |
| Power Requirements | 24 VDC 300 mA |

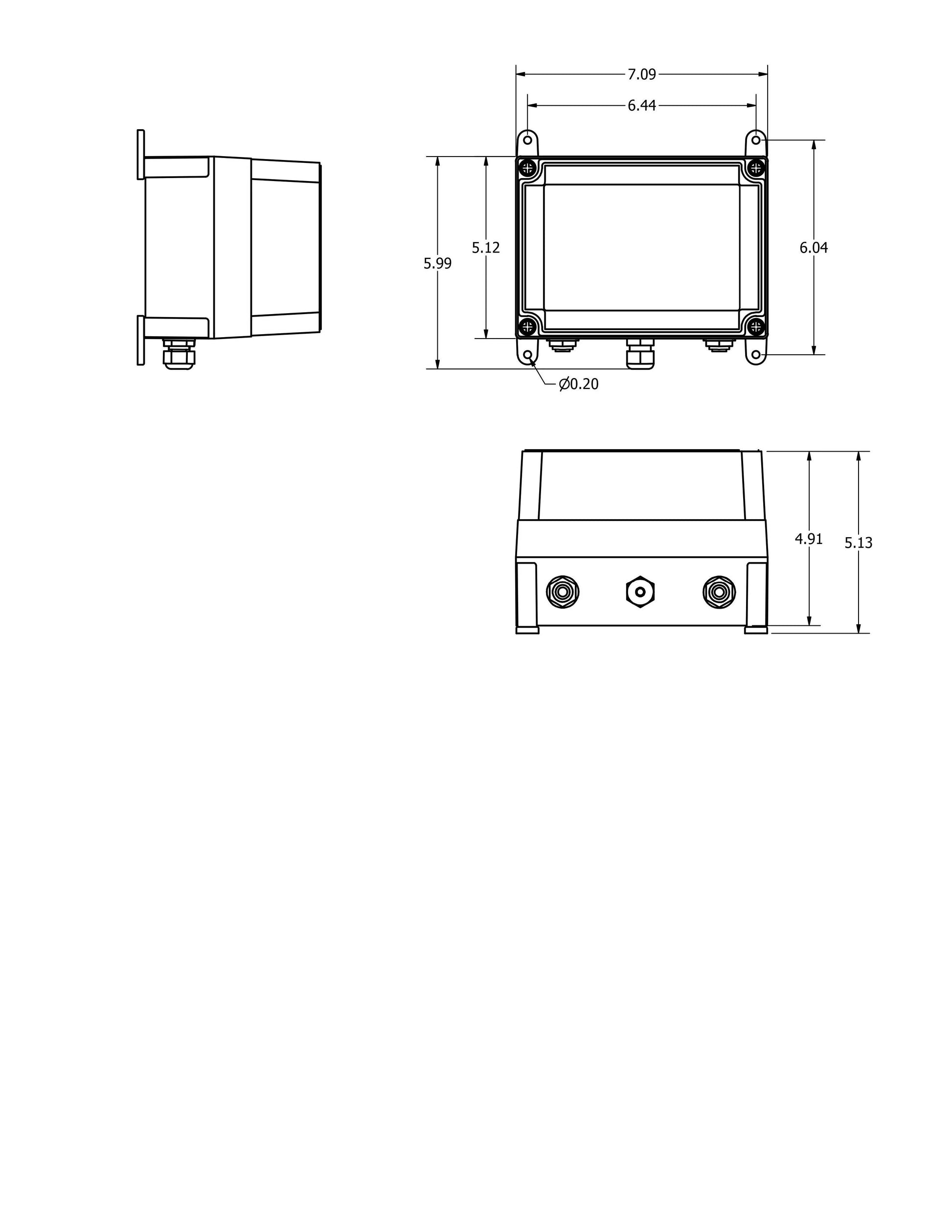

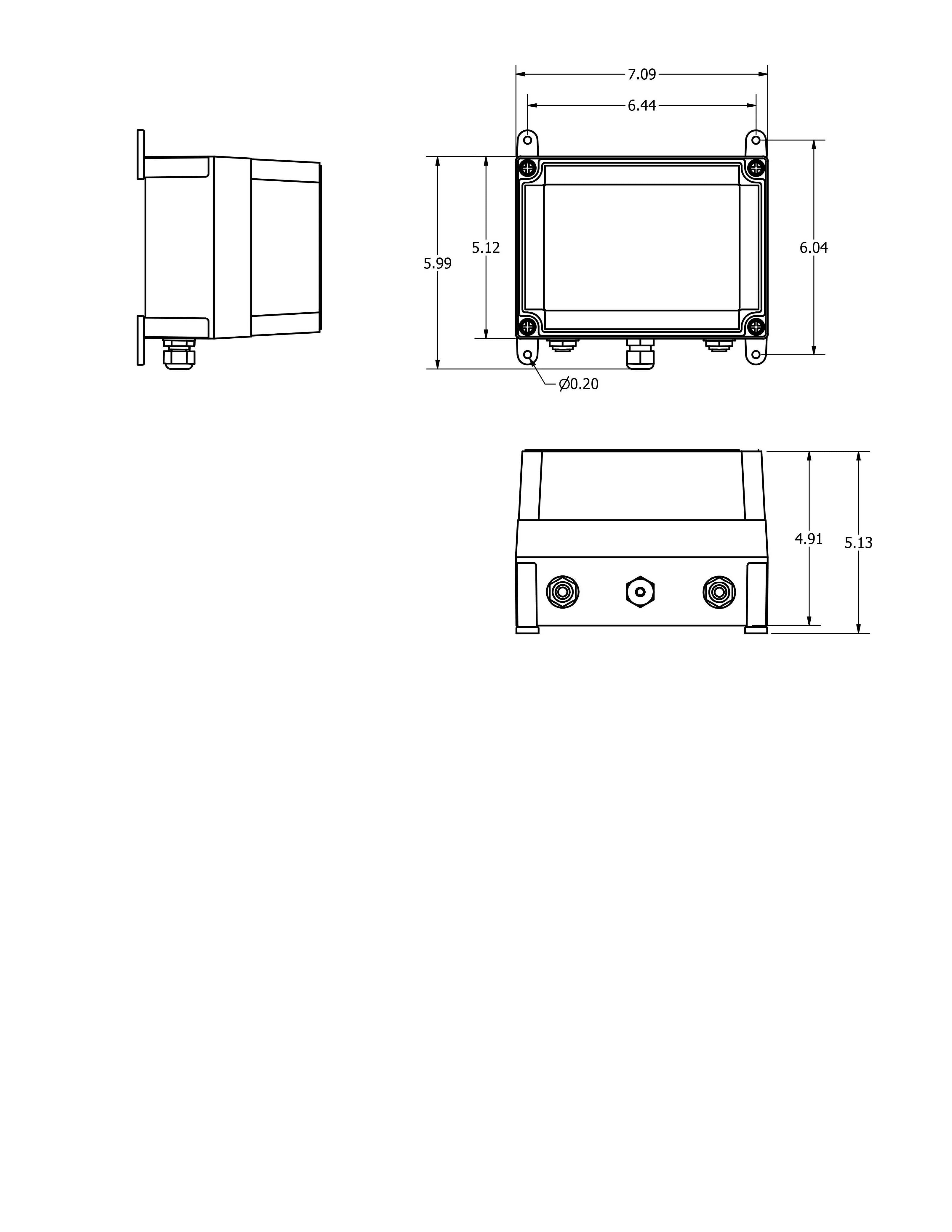

| Width | 7.25 in 184.2 mm |
| Height | 6.0 in 152.4 mm |
| Depth | 5.0 in 127 mm |
| Weight | 2.4 lb 1.2 kg |
| Enclosure1 | Polycarbonate |
| Calibration | Calibration is not required. Periodic span adjustment as needed. |
| Optional |
Available without Horn. Contact us for details. |
| Country of Origin | USA |
| Harmonized Tariff Code | 8531.10.0045 |
